Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | 380*φ293 |
|
Color | Black |
|

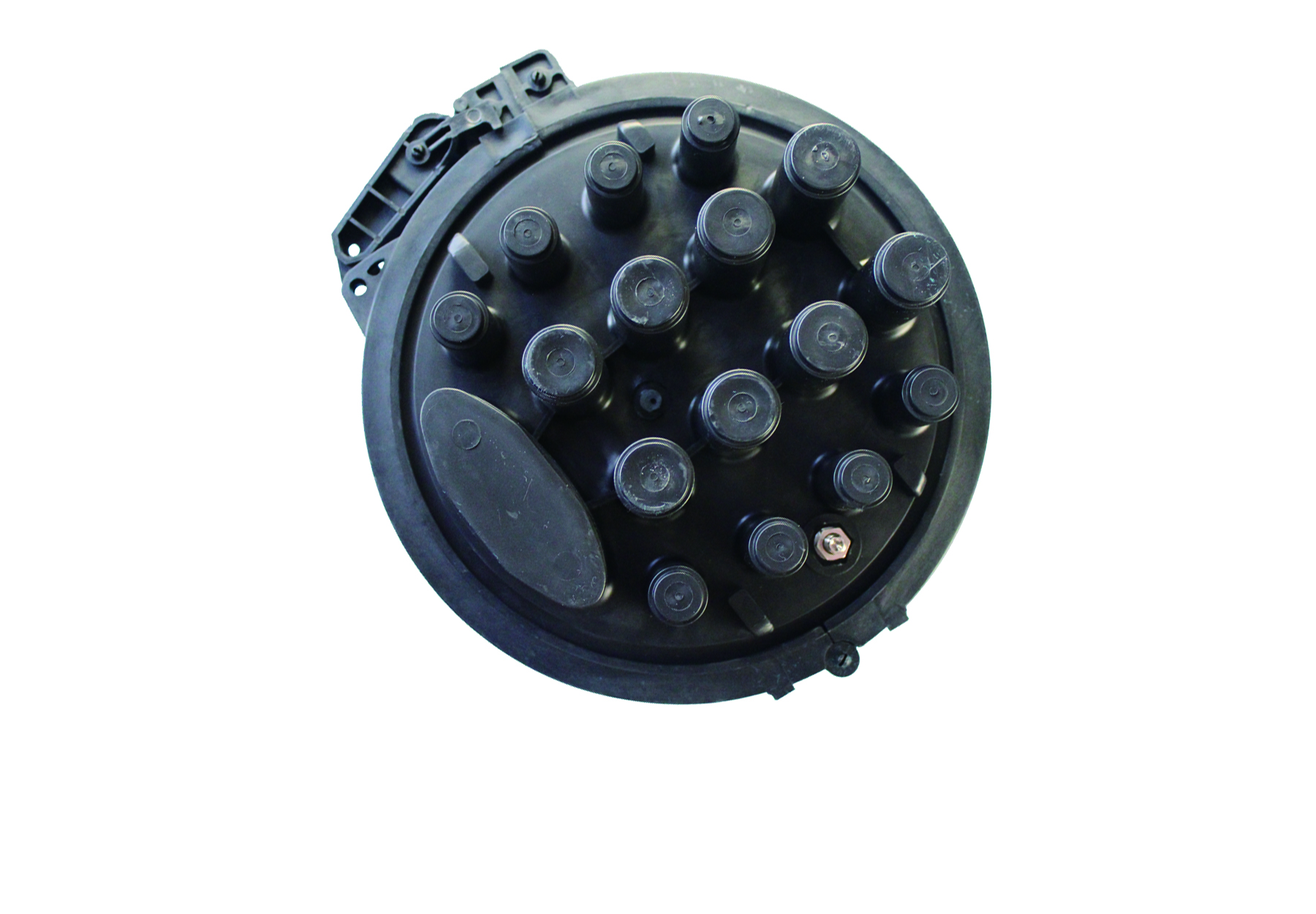

Number of ports | 1 oval port, 16 round ports |
|
Fiber cable diameter of oval port (mm) | Φ12-Φ30 mm |
|
Fiber cable dimension of round port (mm) | Φ8~Φ13.5 (8 small round ports) Φ8~Φ20 (8 big round ports) |
|
Sealing type | Heat shrink sealing |
|
IP grade | IP68 |
|
Splicing capacity(Max) | 144F | Optional as request |
