Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | Φ180*540 |
|
Color | Black |
|

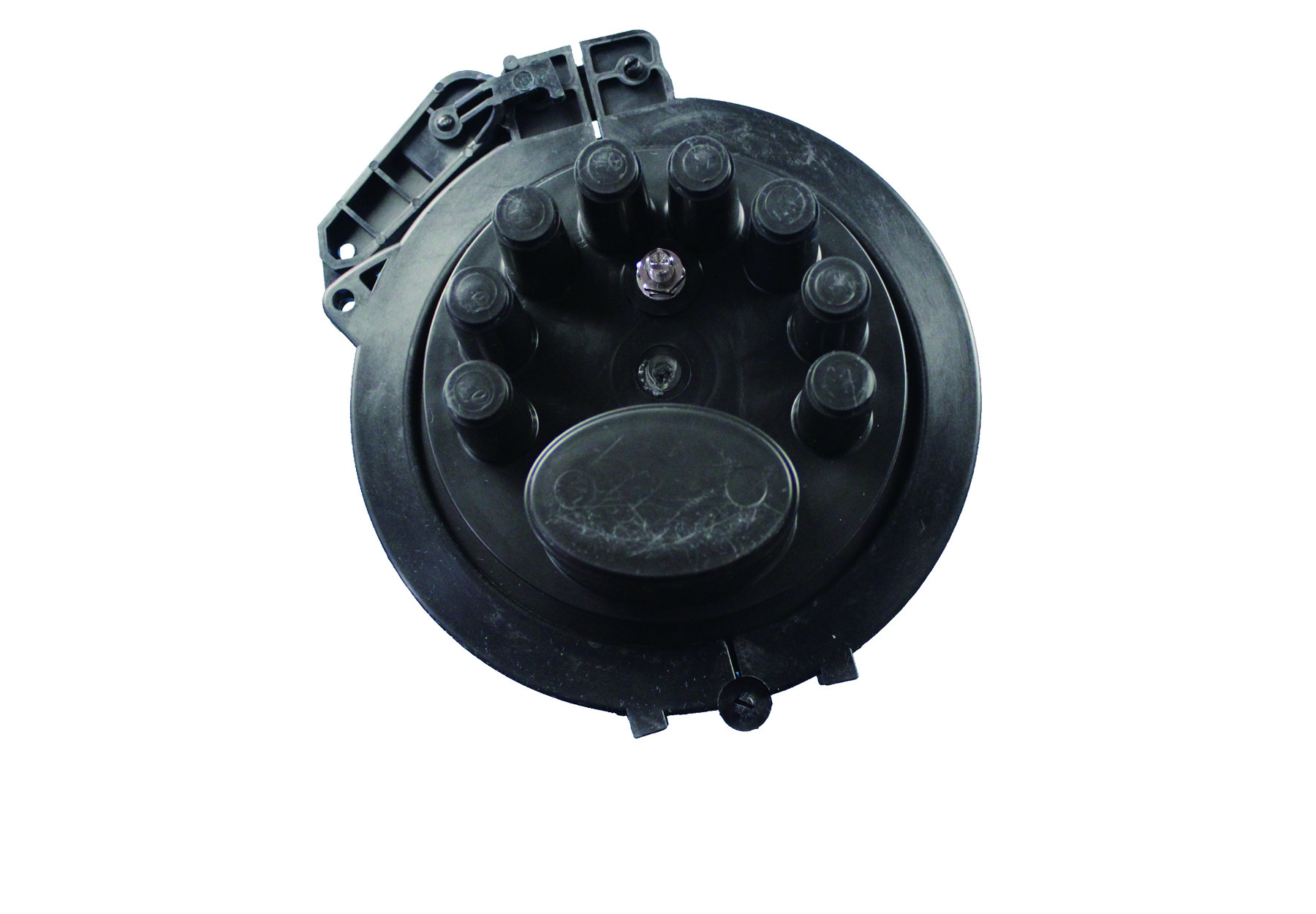

Number of ports | 1 oval port, 8 round ports |
|
Fiber cable diameter of oval port (mm) | 8-25 mm |
|
Fiber cable dimension of round port (mm) | 8-10 mm |
|
Sealing type | Heat shrink sealing |
|
IP grade | IP68 |
|

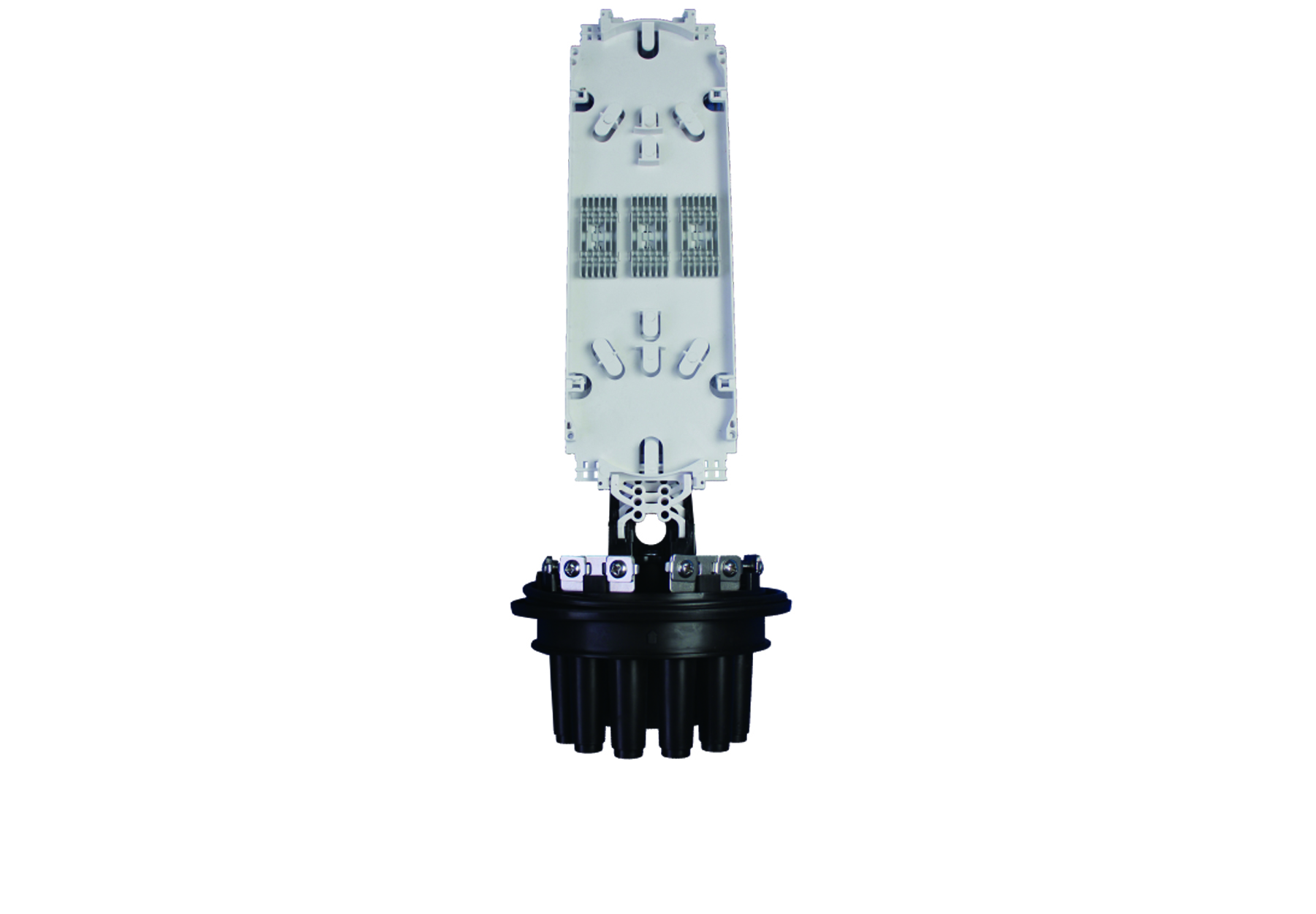

Splicing capacity(Max) JB-102C-8P | 6x36=216 | Optional as request |
