Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | Φ285*488mm |
|
Color | Black |
|

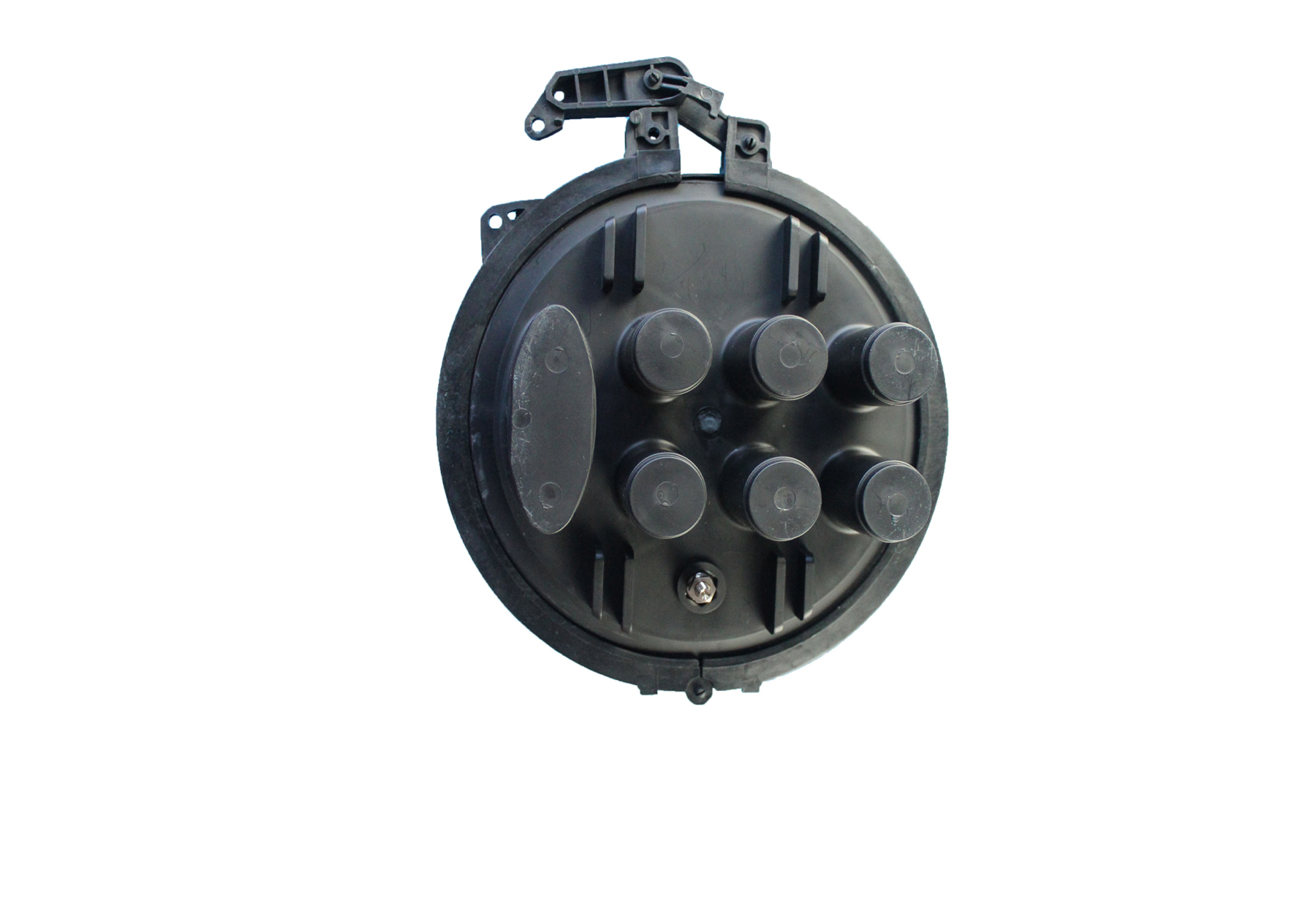

Number of ports | 1 oval port, 6 round ports |
|
Fiber cable diameter of oval port (mm) | 12-30 mm |
|
Fiber cable dimension of round port (mm) | 12-30 mm |
|
Sealing type | Heat shrink sealing |
|
IP grade | IP68 |
|
Splicing capacity(Max)（T011E） | 10*144=1440F(12F Ribbon) | Optional as request |
.jpg "HTSC-220-MT-BC6(1).jpg")
.jpg "HTSC-220-MT-BC6-1(1).jpg")
.jpg "HTSC-220-MT-BC6-2(1).jpg")
.jpg "HTSC-220-MT-BC6-3(1).jpg")
