Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | Φ293*488mm |
|
Color | Black |
|

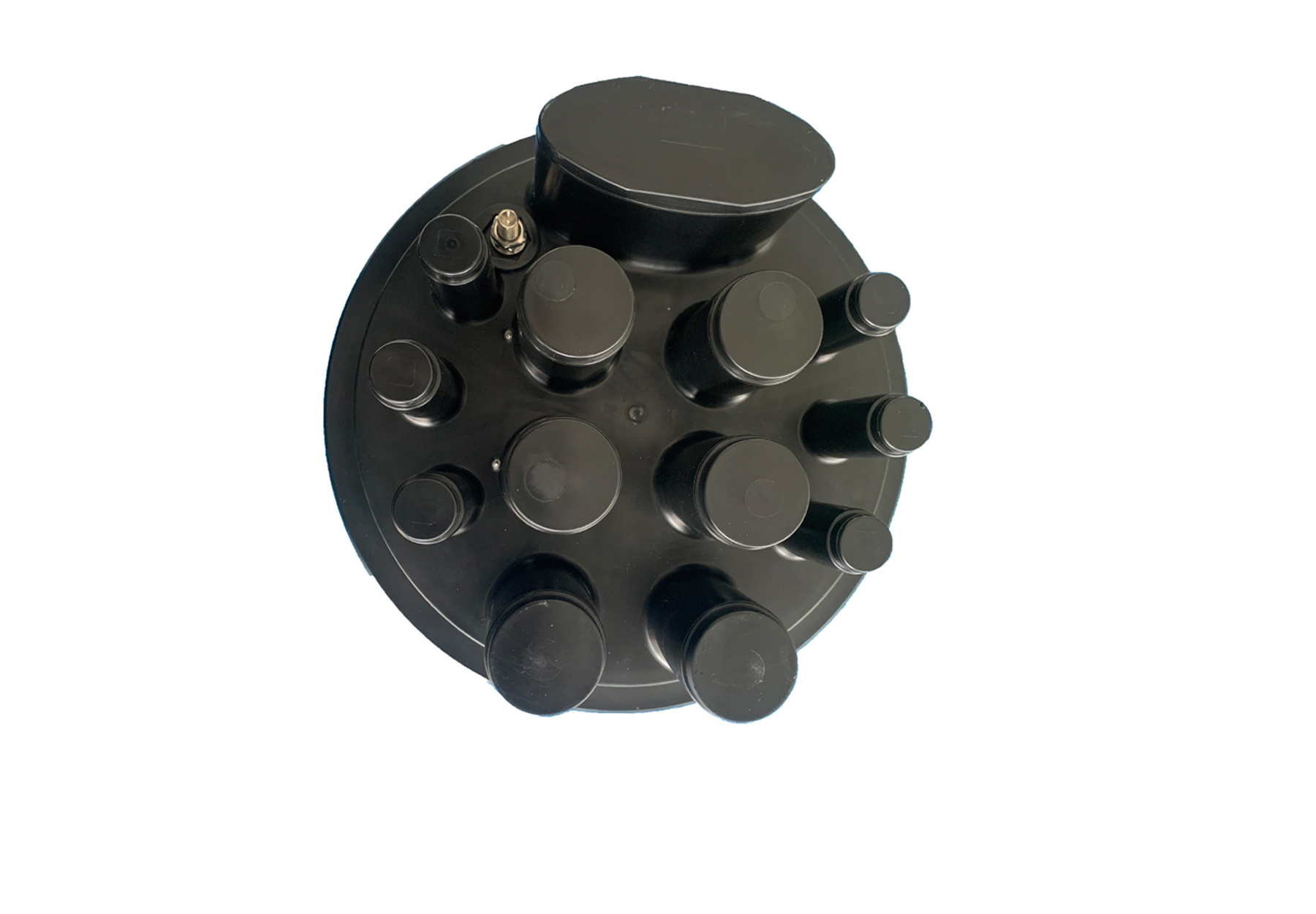

Number of ports | 1 oval port, 12 round ports |
|
Fiber cable diameter of oval port (mm) | 8-30 mm |
|
Fiber cable dimension of round port (mm) | 6 round ports max 13.5 mm. 6 round ports max 30 mm or drop cable. |
|
Sealing type | Heat shrink sealing |
|
IP grade | IP68 |
|

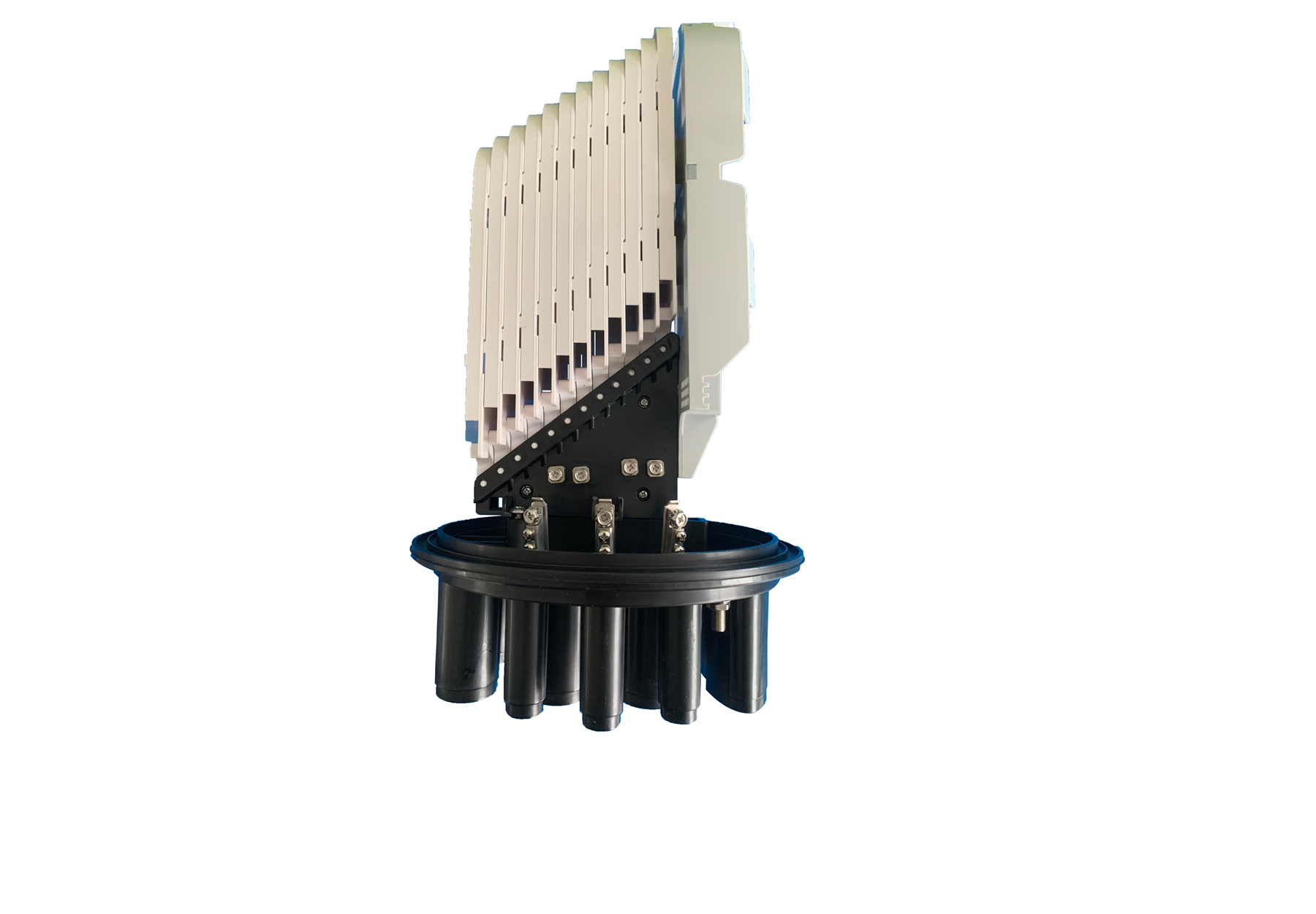

Splicing capacity(Max)(T011A) | 12*24=288F | Optional as request |
Splicing capacity(Max)(T117A) | 12*48=576F | Optional as request |
