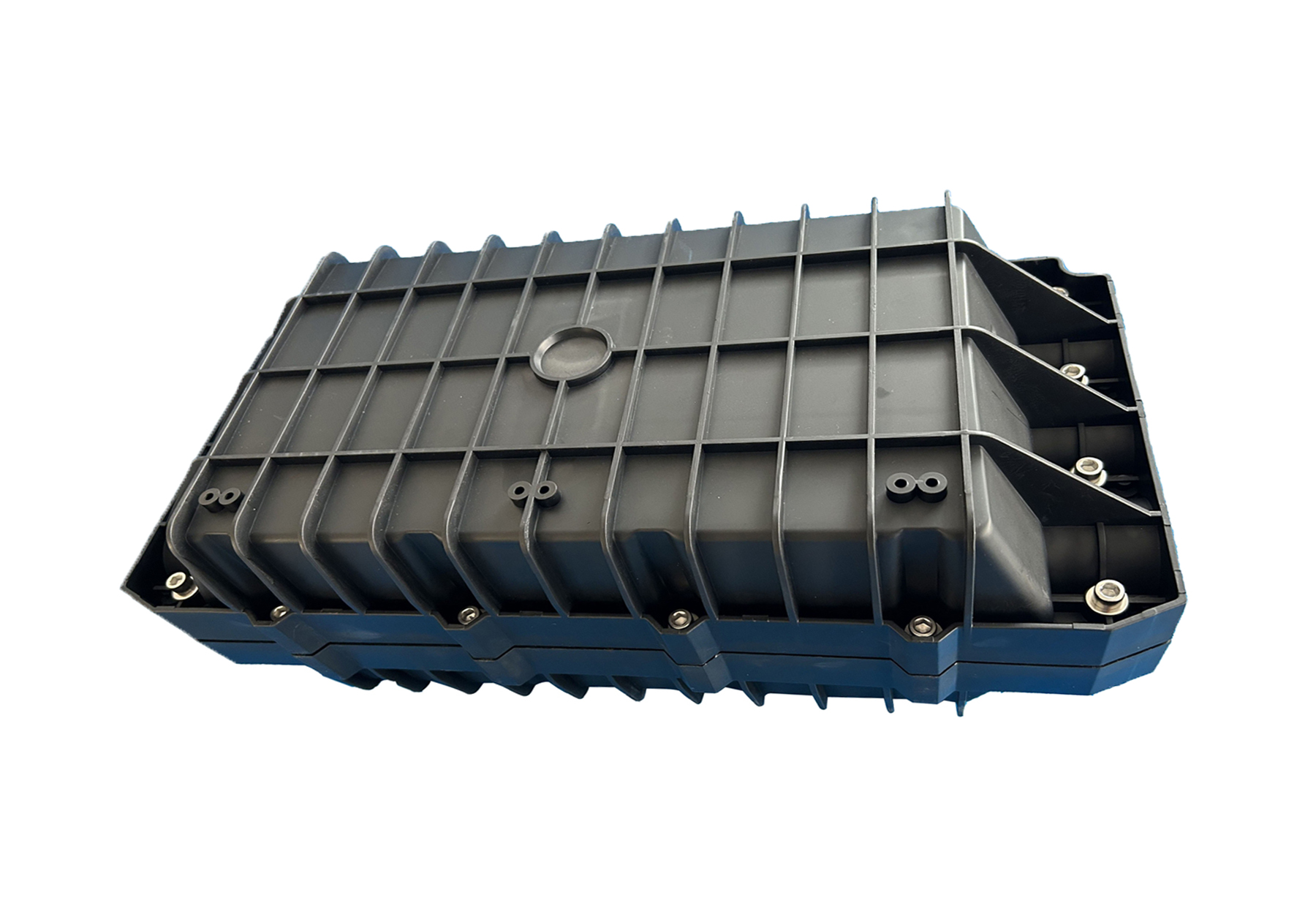

Material of housing

High-strength PP+GF

Material of internal components

High-strength ABS

Material of metal accessory

High-quality stainless steel

External dimension(mm)

500mm x 270mm x 194mm

Color

Black

Number of ports

6

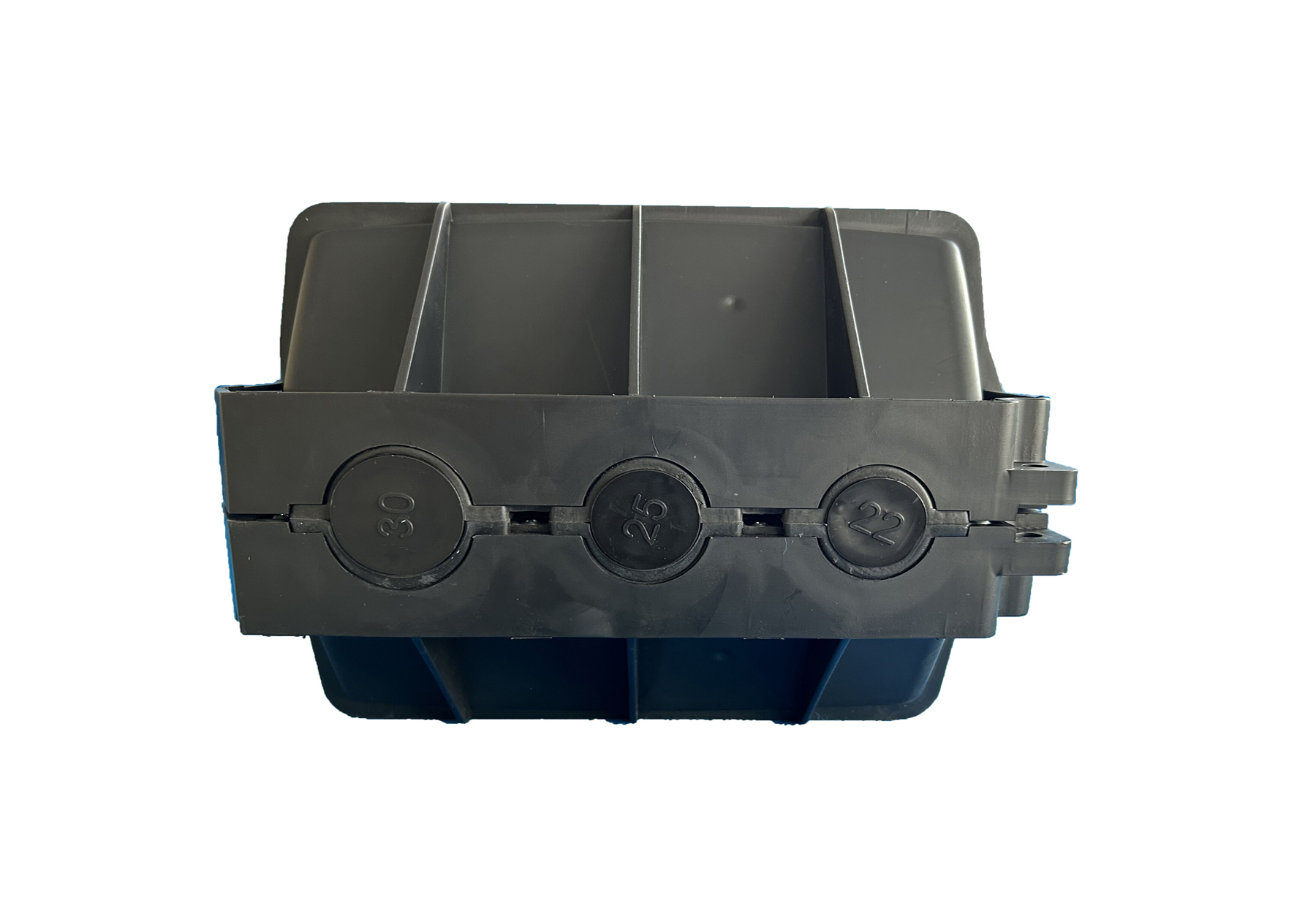

Cable ports/Max.diameter of

cable(mm)

Design 1: 2 ports for 1 cable with max dia 20 mm,

2 ports for 22mm and 2 ports for 25mm.

Design 2: 2 ports for 1 cable with max dia 22 mm,

2 ports for 25mm and 2 ports for 30mm.

Sealing type

Mechanical

IP grade

IP68

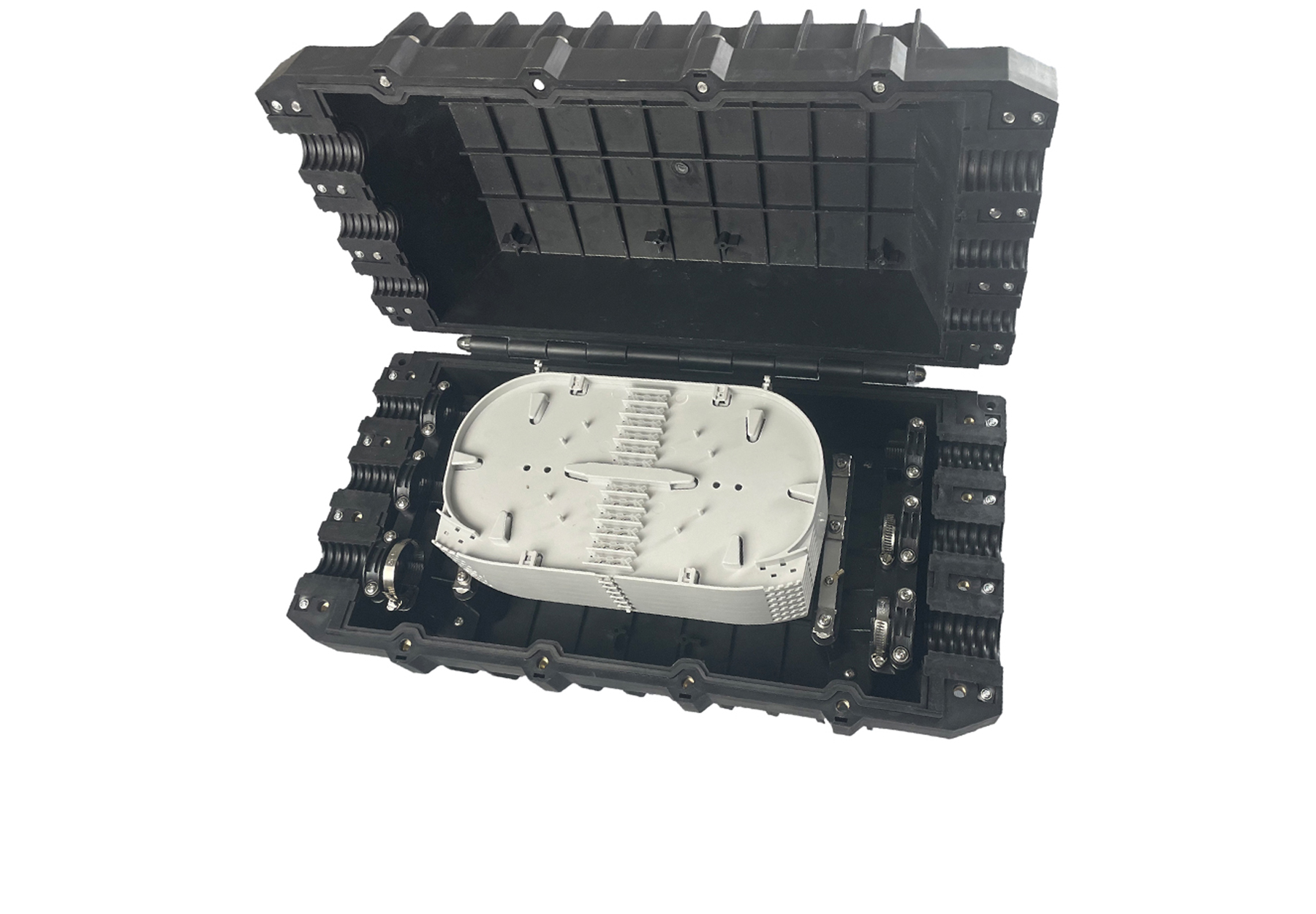

Splicing capacity(Max) ，Tray T005A

8x24=192 (single fiber）

Optional as request

Splicing capacity(Max) ,Tray T008A

12*36=432 (single fiber）

Splicing capacity(Max) ,Tray T067A

7*48=336 (single fiber）

Splicing capacity(Max), Tray T067B

7*144=1008（12F ribbon）

7*96=672（8F ribbon）
