Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | Φ180*540 |
|
Color | Black |
|

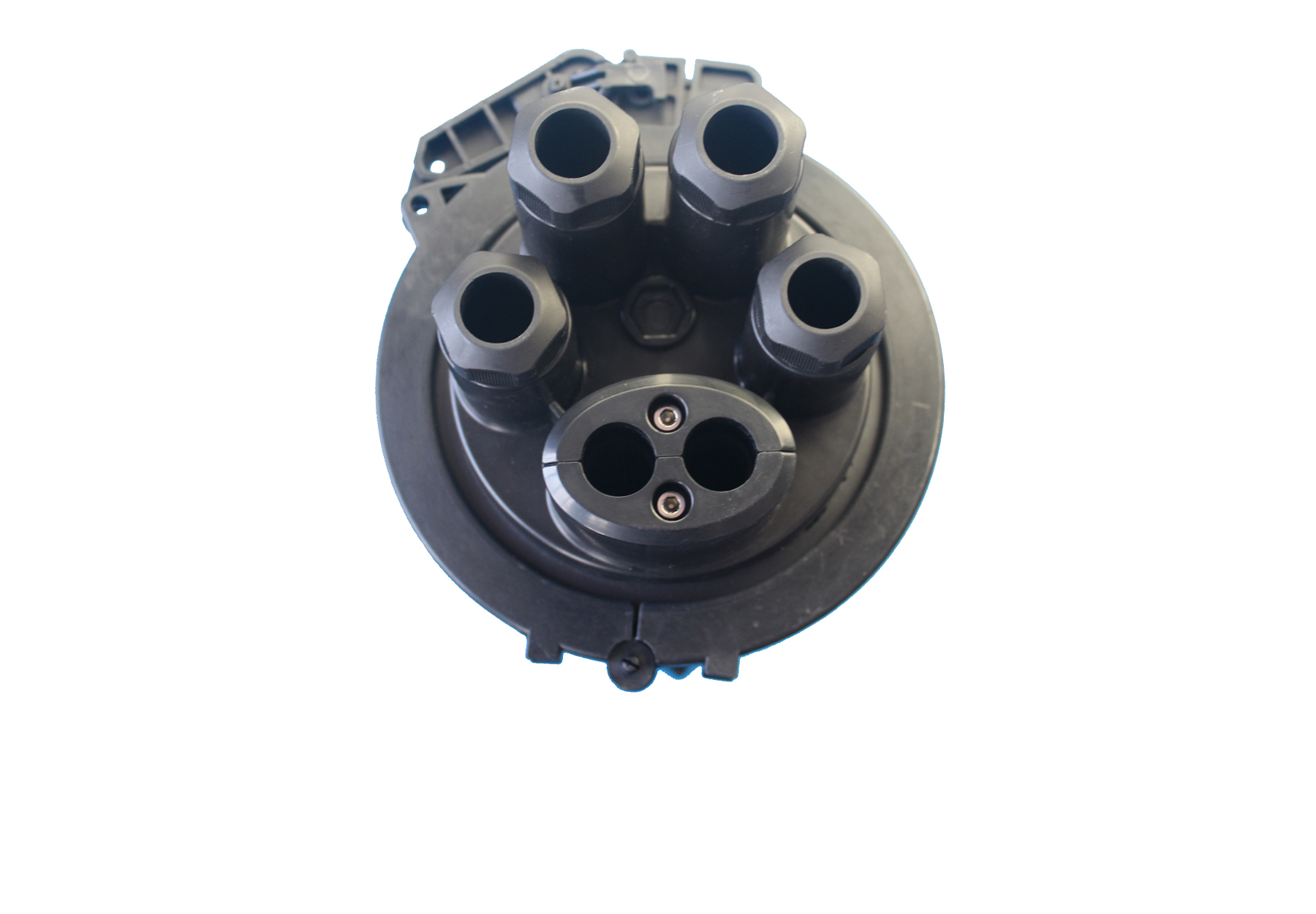

Number of ports | 1 oval port, 4 round ports |
|
Fiber cable diameter of oval port (mm) | Φ8~Φ20mm |
|
Fiber cable dimension of round port (mm) | Φ8~Φ20mm |
|
Sealing type | Mechanical |
|
IP grade | IP68 |
|
Splicing capacity(Max) （T016A） | 4x24=96F | Optional as request |
Splicing capacity(Max) (T017A) | 4x24=96F |
Splicing capacity(Max) (T018A) | 4x36=144F |
