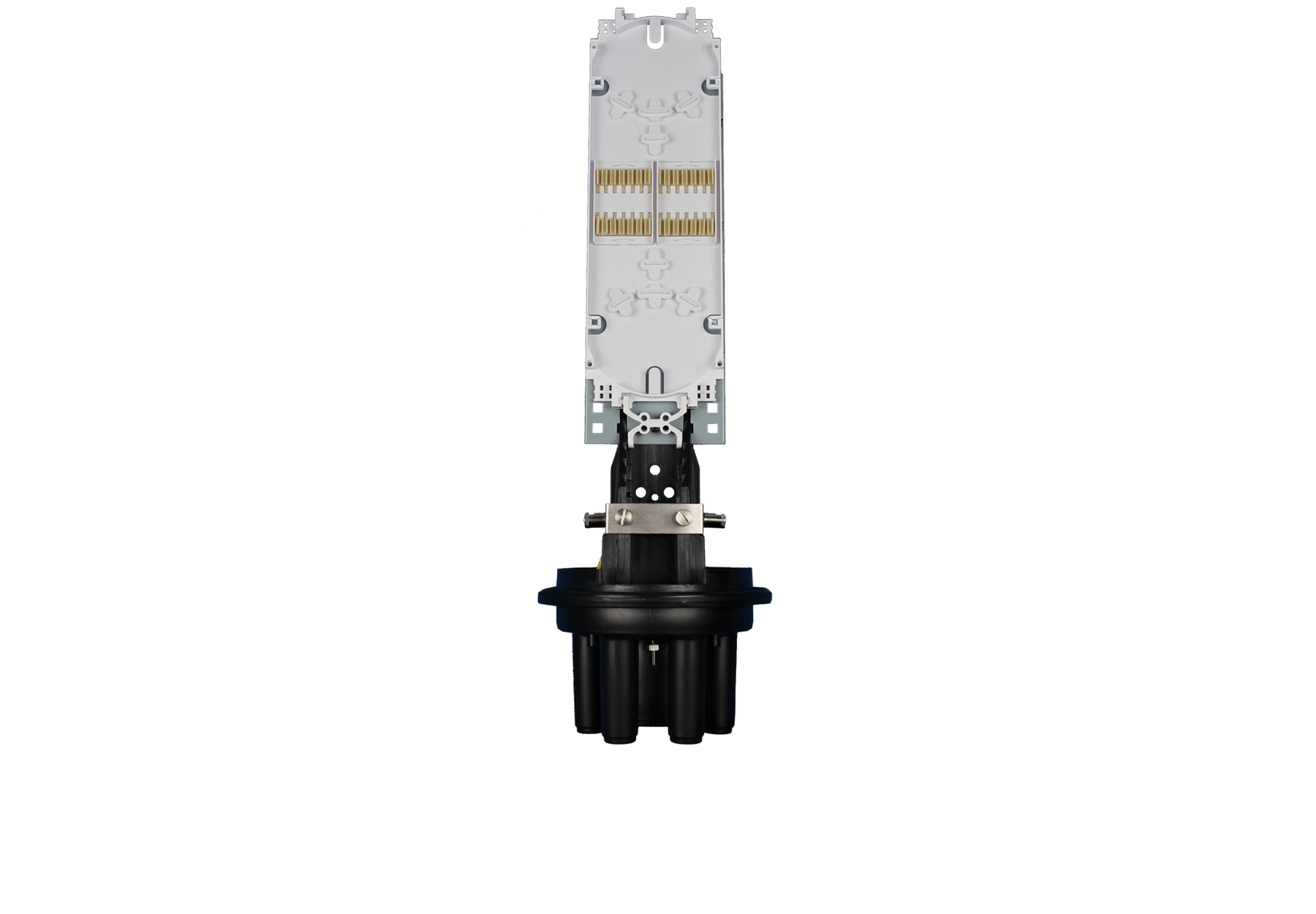

  • JB-102-4P-1.jpg

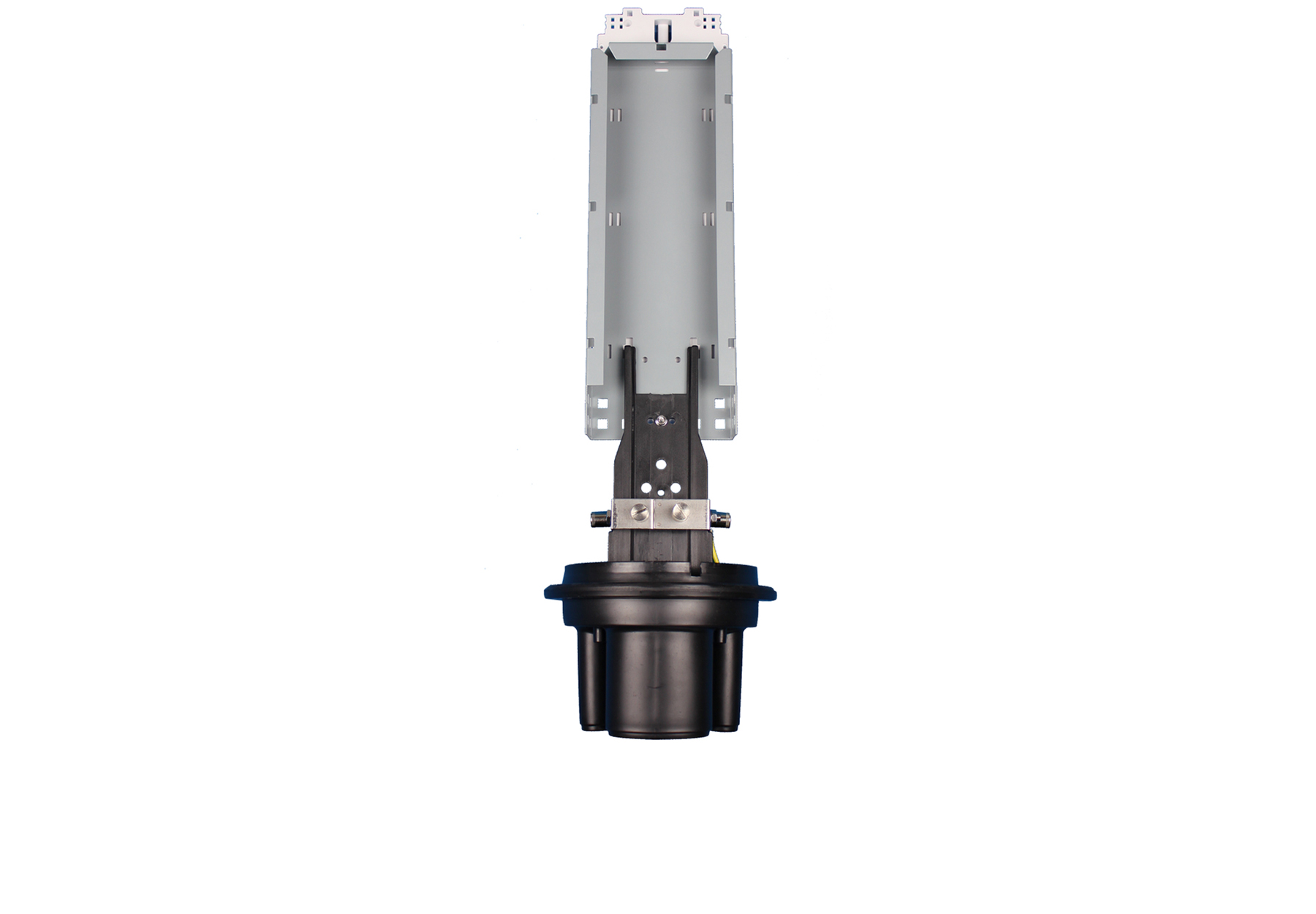

  • JB-102-4P-2.jpg

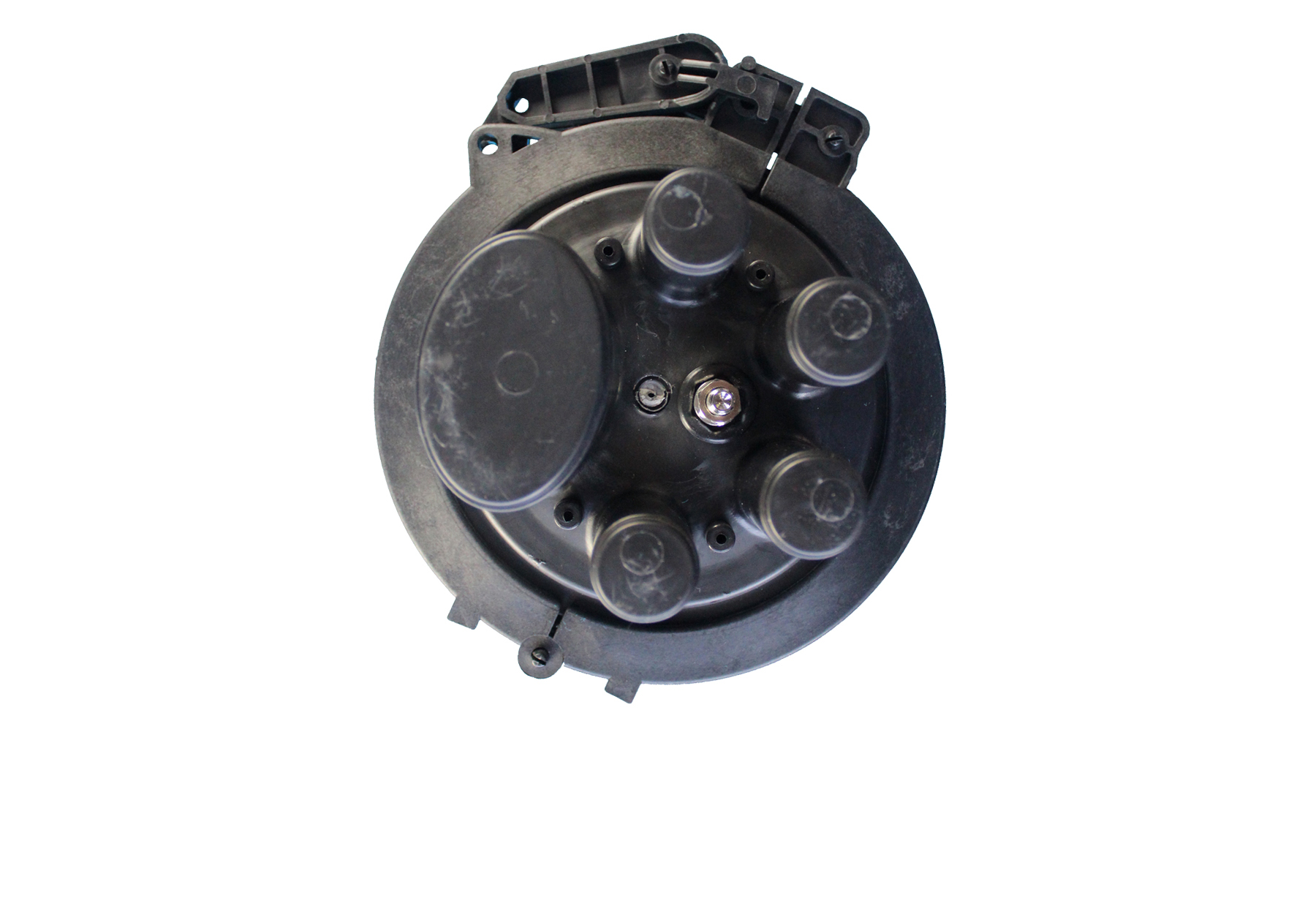

  • JB-102-4P-3.jpg

JB-102-4P

Item

Specifications

Note

Material of housing

High-strength PP+GF


Material of internal components

High-strength ABS


Material of metal accessory

High-quality stainless steel


External dimension(mm)

Φ180*540


Color

Black


Number of ports

1 oval port, 4 round ports


Fiber cable diameter of oval port (mm)

8-25 mm


Fiber cable dimension of round port (mm)

8-19 mm


Sealing type

Heat shrink sealing


IP grade

IP68


Splicing capacity(Max) JB-102A-4P

4x24=96

Optional as request

Splicing capacity(Max) JB-102B-4P

4x24=96

Splicing capacity(Max) JB-102C-4P

4x36=144
