Item | Specifications | Note |
Material of housing | High-strength PC+ABS |
|
Material of internal components | ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | 398*327*118 |
|
Color | Gray, black, white |
|

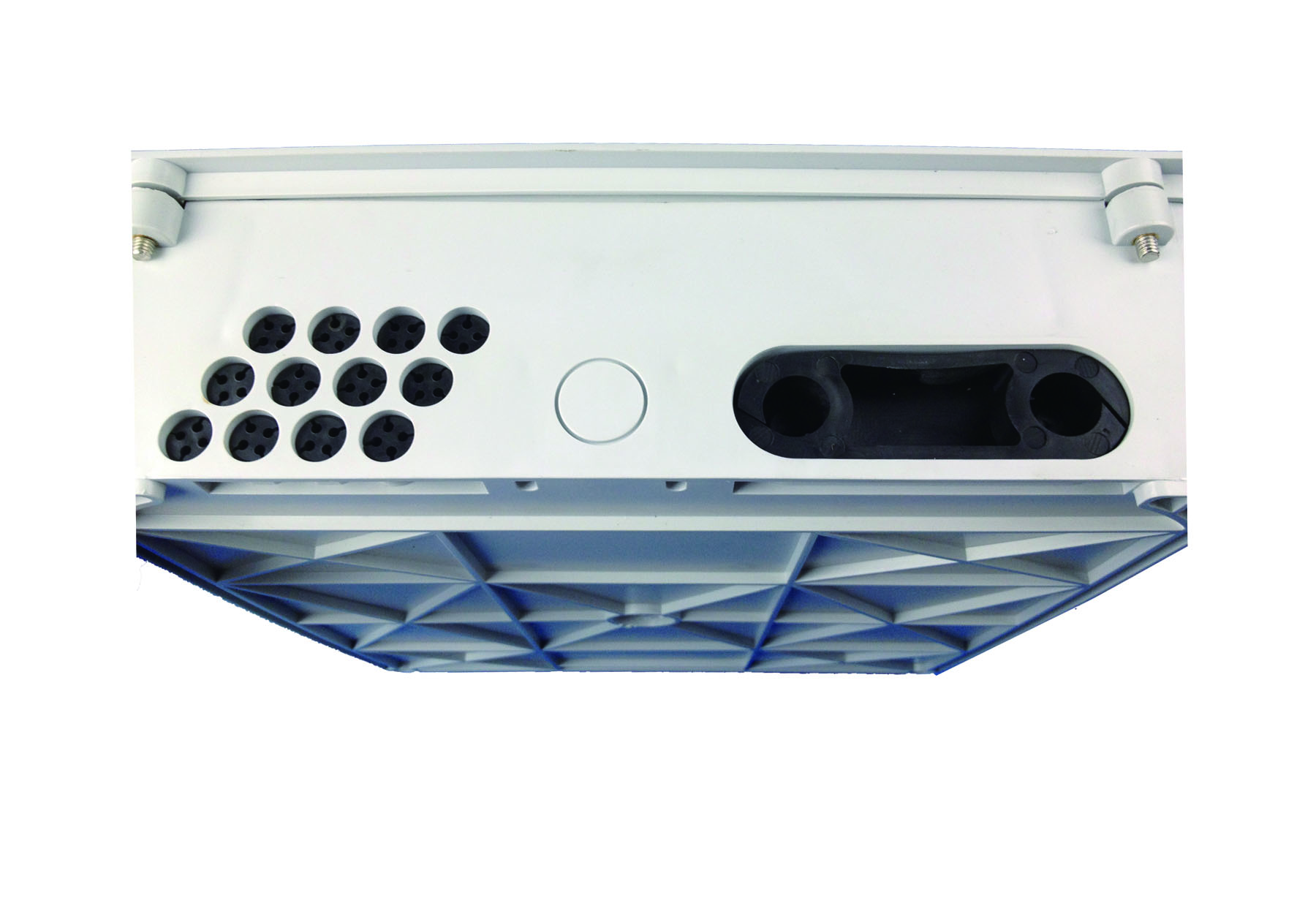

Number of distribution cable ports | 3 |
|
Number of drop cable ports | 48 |
|
3 Main Cable Ports | The Oval port max Ø 20 mm. The reserved port max Ø 18 mm |
|
Fiber cable dimension of drop port(mm) | φ3 |
|
Capacity(Max) | 6*24=144 Splices |
|
Max quantity splitter | 1x8, 1x16， 1*32 PLC splitter |
|
simplex adaptors | 54 |
|
IP grade | IP65 |
|
