Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | Φ230*450 |
|
Color | Black |
|

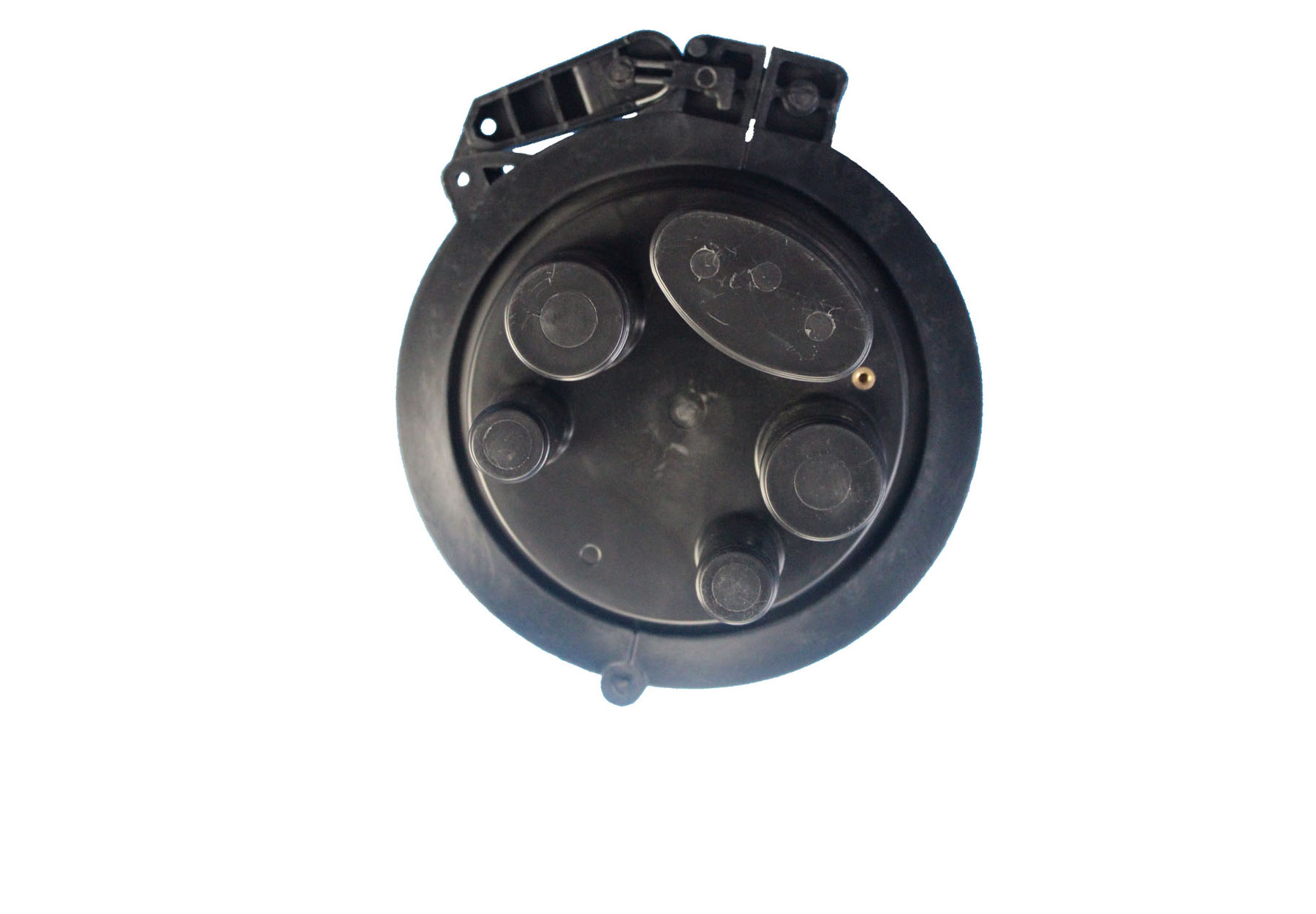

Number of ports | 1 oval portㄝ4 round ports |
|
Fiber cable diameter of oval port (mm) | Φ9-Φ22 mm |
|
Fiber cable dimension of round port (mm) | Φ8~Φ17.5 (2 small round ports) Φ12~Φ30 (2 big round ports) |
|
Sealing type | Heat shrink sealing |
|
IP grade | IP68 |
|
Splicing capacity(Max) （T010A） | 6x24=144F | Optional as request |
Splicing capacity(Max) （T011A） | 7x24=168F |
Splicing capacity(Max) （T117A） | 6x48=288F |
