Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | Φ293*380 |
|
Color | Black |
|

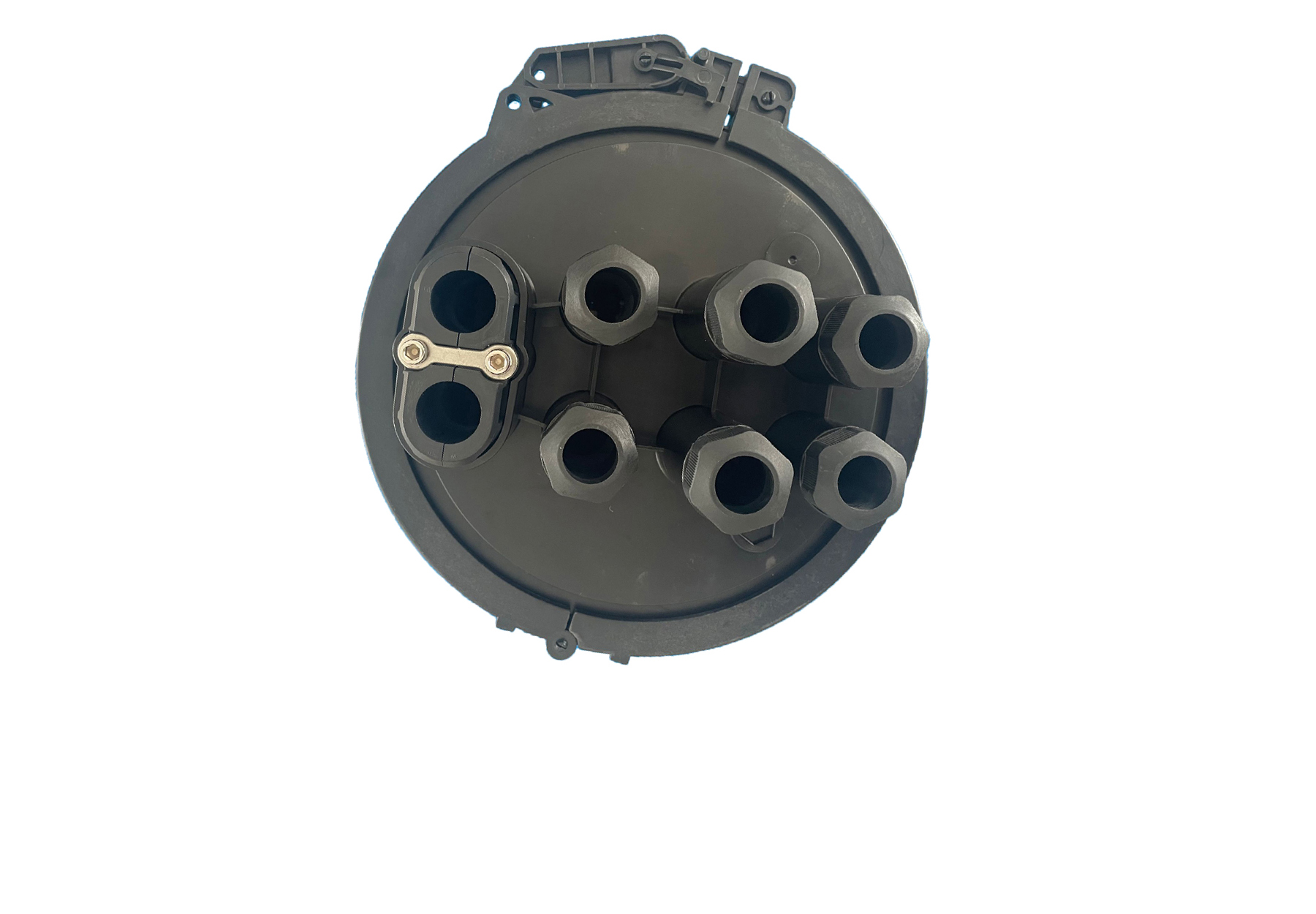

Number of ports | 1 large port , 6 round ports |
|
Fiber cable diameter of large port (mm) | Φ8~Φ22mm |
|
Fiber cable dimension of round port (mm) | Φ6~Φ20mm |
|
Sealing type | Mechanical |
|
IP grade | IP68 |
|
Splicing capacity(Max) | 12x16=192 | Optional as request |
