Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | Φ230*345 |
|
Color | Black |
|

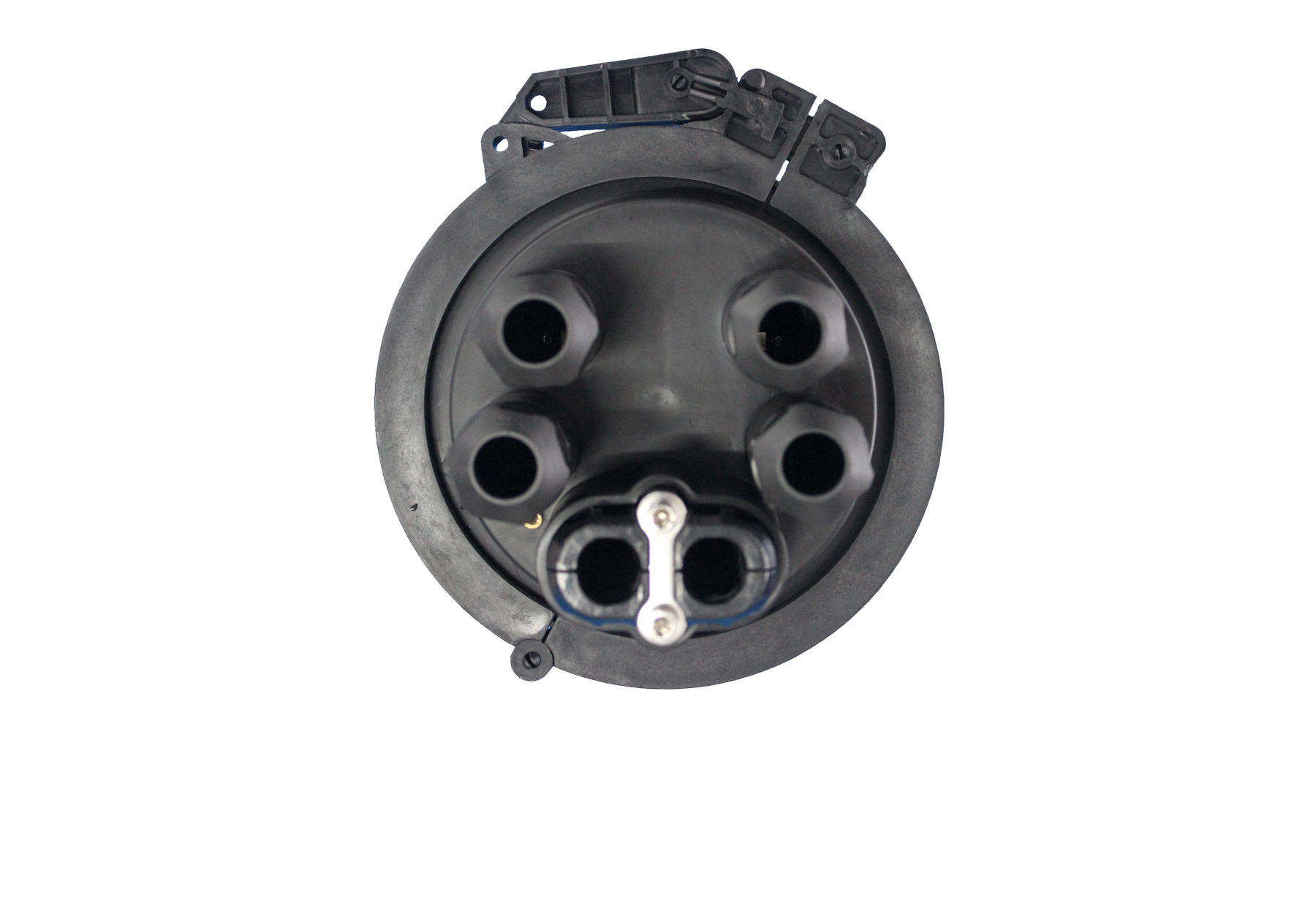

Number of ports | 1 oval port, 4 round ports |
|
Fiber cable diameter of oval port (mm) | Φ6~Φ17.5mm |
|
Fiber cable dimension of round port (mm) | Φ6~Φ17.5mm |
|
Sealing type | Mechanical |
|
IP grade | IP68 |
|
Compatibility split ratio splitter | 1:2, 1:4, 1:8 |
|
Max quantity of splitter | 1 for each splice tray |
|
Splicing capacity(Max) | 2x24=48F | Optional as request |
