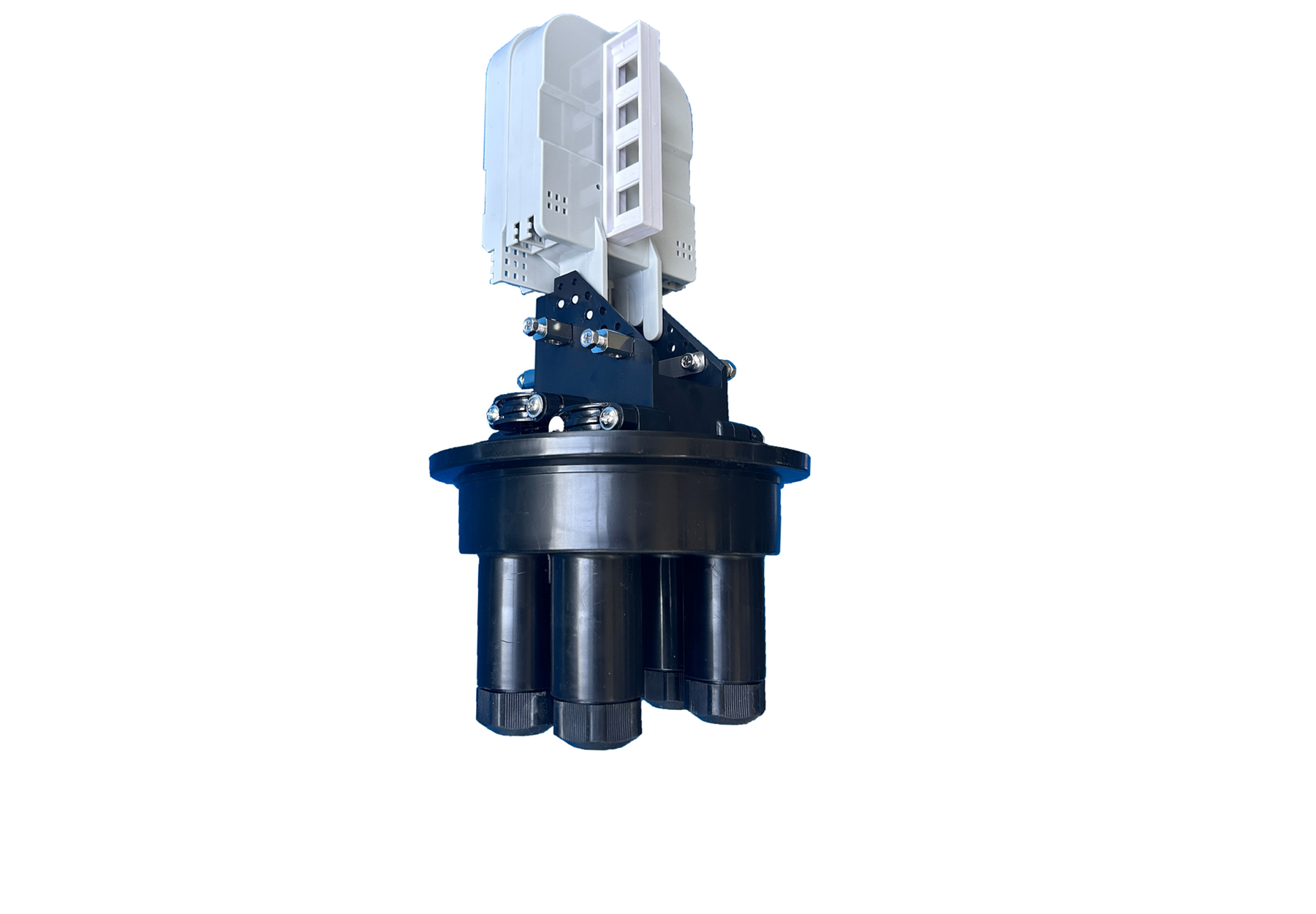

  • HTSC-314-8SC-1(1).jpg

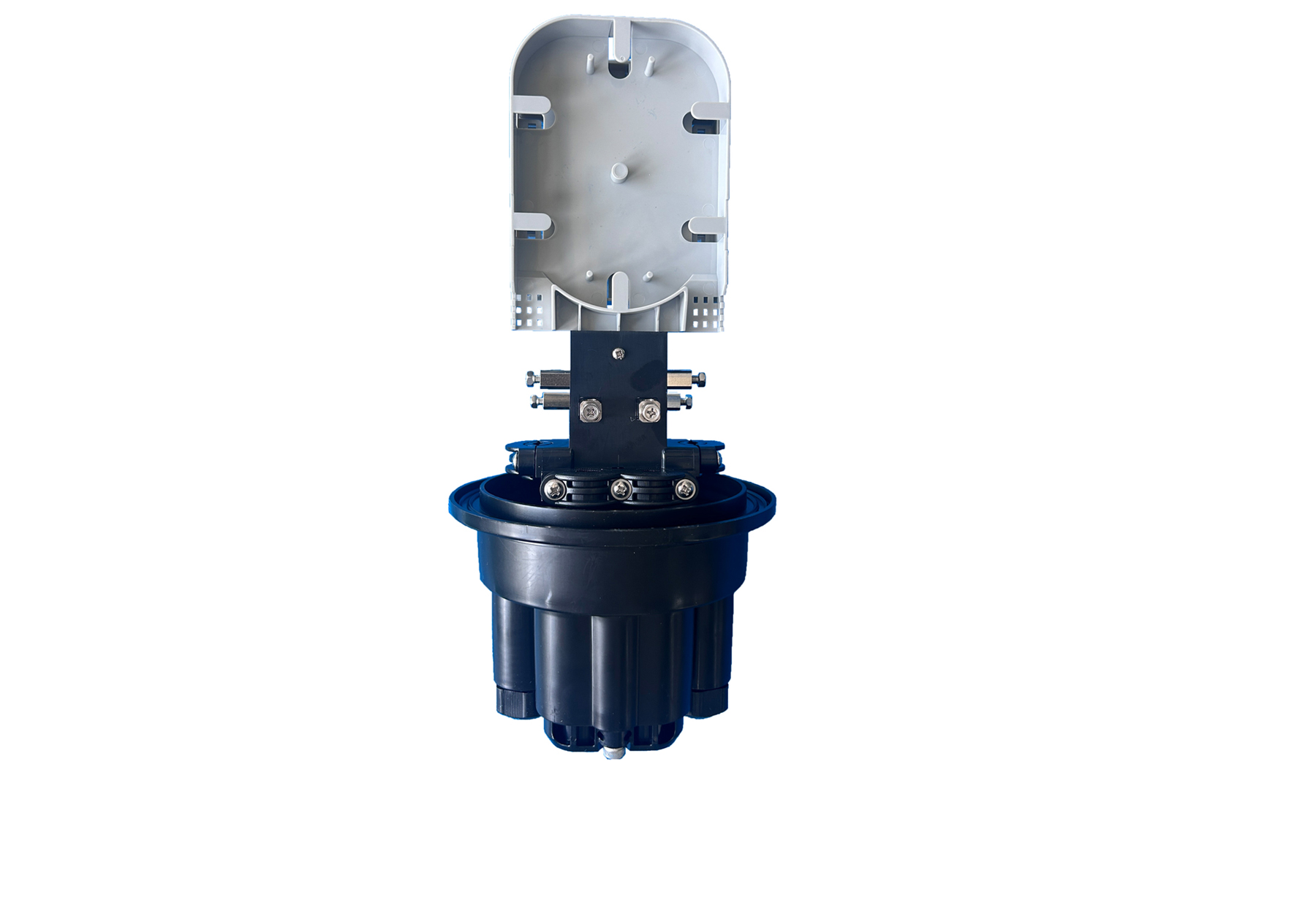

  • HTSC-314-8SC-2(1).jpg

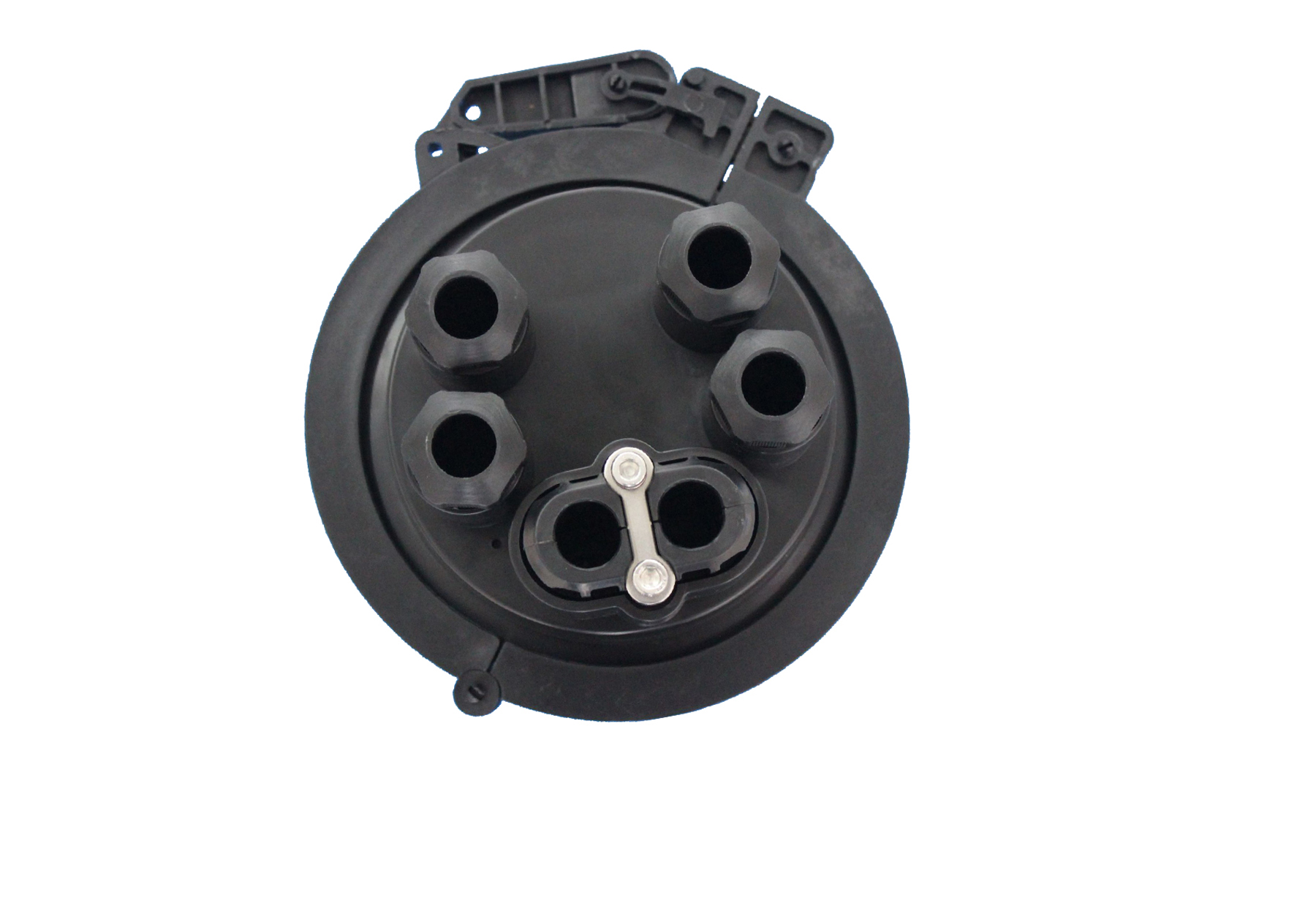

  • HTSC-314-8SC-3(1).jpg

HTSC-314-8SC

Item

Specifications

Note

Material of housing

High-strength PP+GF


Material of internal components

High-strength ABS


Material of metal accessory

High-quality stainless steel


External dimension(mm)

Φ230*345


Color

Black


Number of ports

1 oval port, 4 round ports


Fiber cable diameter of oval port (mm)

Φ6~Φ17.5mm


Fiber cable dimension of round port (mm)

Φ6~Φ17.5mm


Sealing type

Mechanical


IP grade

IP68


Compatibility split ratio splitter

1:2, 1:4, 1:8


Max quantity of splitter

1 for each splice tray


Splicing capacity(Max) T059A

3x24=72F

Optional as request
