Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | 576*φ285 |
|
Color | Black |
|

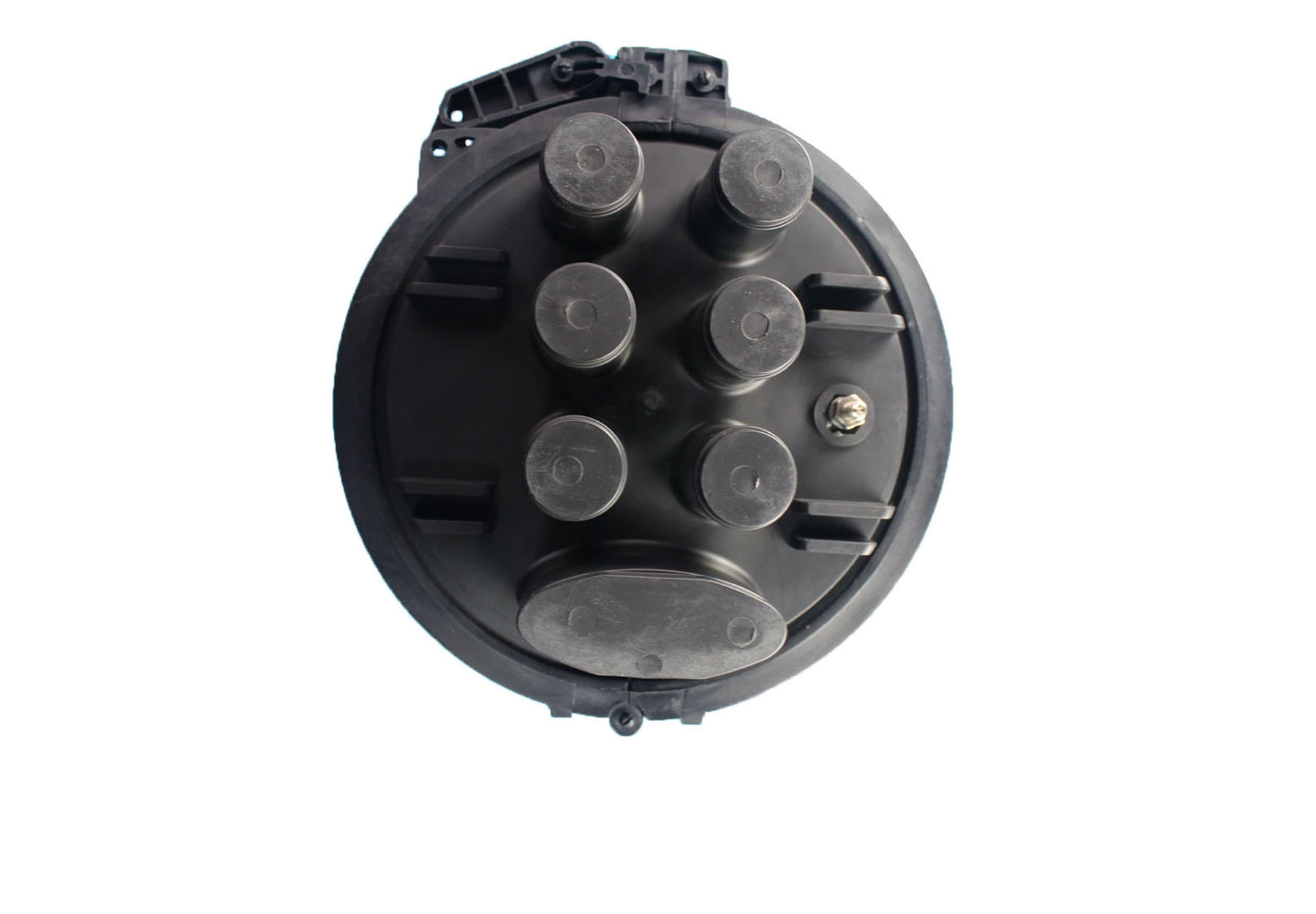

Number of ports | 1 oval port, 6 round ports |
|
Fiber cable diameter of oval port (mm) | 12-30mm(mechanical sealing) |
|
Fiber cable dimension of round port (mm) | 12-30 mm(mechanical sealing) |
|
Sealing type | Mechanical sealing |
|
IP grade | IP68 |
|
Splicing capacity(Max) （T030A） | 10x72F=720F | Optional as request |
Splicing capacity(Max) （T030D） | 10*54F=540F+30 PLC splitters | Optional as request |
