Item | Specifications | Note |
Material of housing | High-strength PP+GF |
|
Material of internal components | High-strength ABS |
|
Material of metal accessory | High-quality stainless steel |
|
External dimension(mm) | 280*182*102 |
|
Color | Black |
|
Number of distribution cable ports | 4 |
|
Number of drop cable ports | 16 |
|

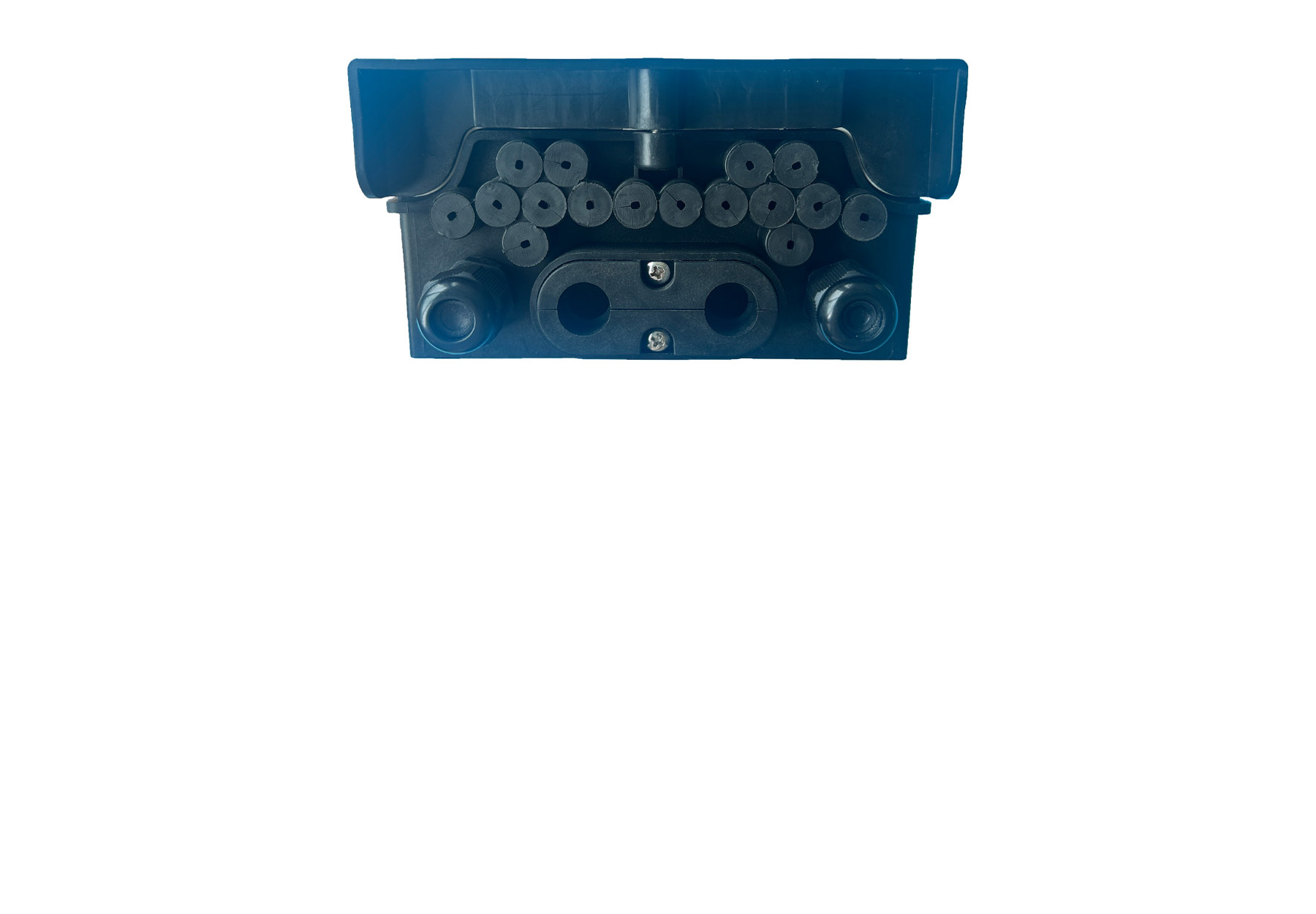

Main Cable Ports | 4 cable ports: (2 rubber seal ports, 2 cable gland ports) for 1 cable with max 12mm. 16 drop cable ports: for 1 cable with diameter 3mm or 3x2mm. |
|
Fiber cable dimension of drop port(mm) | 2*3MM |
|
Capacity(Max) | 16 Splices |
|
Max quantity splitter | 1x4,1x8, 1x16 PLC splitter |
|
simplex adaptors | 16 |
|
