Material of housing

High-strength PP+GF

Material of internal components

High-strength ABS

Material of metal accessory

High-quality stainless steel

External dimension(mm)

560mm x 240mm x 180mm

Color

Black

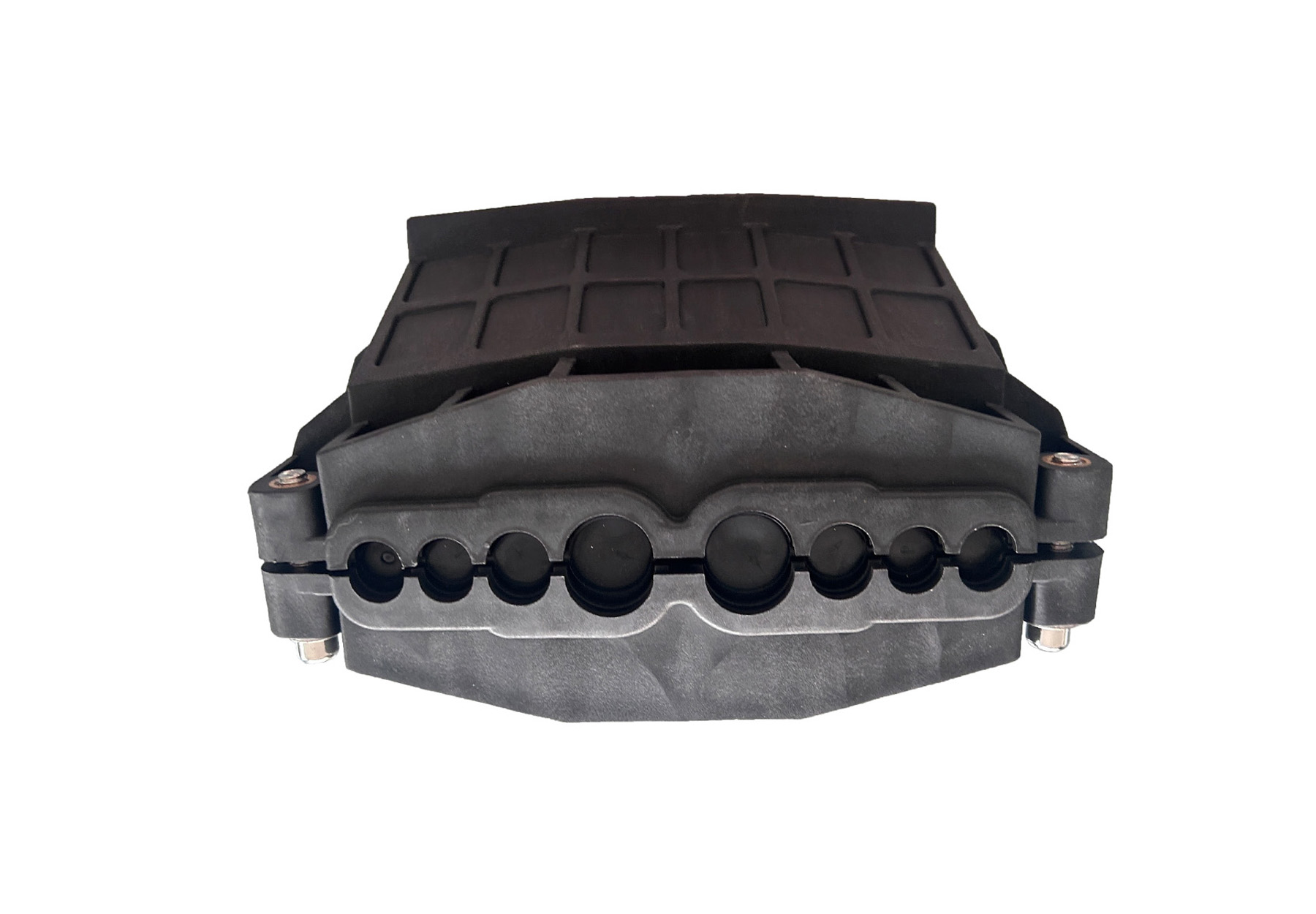

Number of ports

16

Cable ports/Max.diameter of

cable(mm)

4 ports for 1 cable with max 23mm,

4 ports for 1 cable with max 16mm,

8 ports for 1 cable with max 14mm

Sealing type

Mechanical

IP grade

IP68

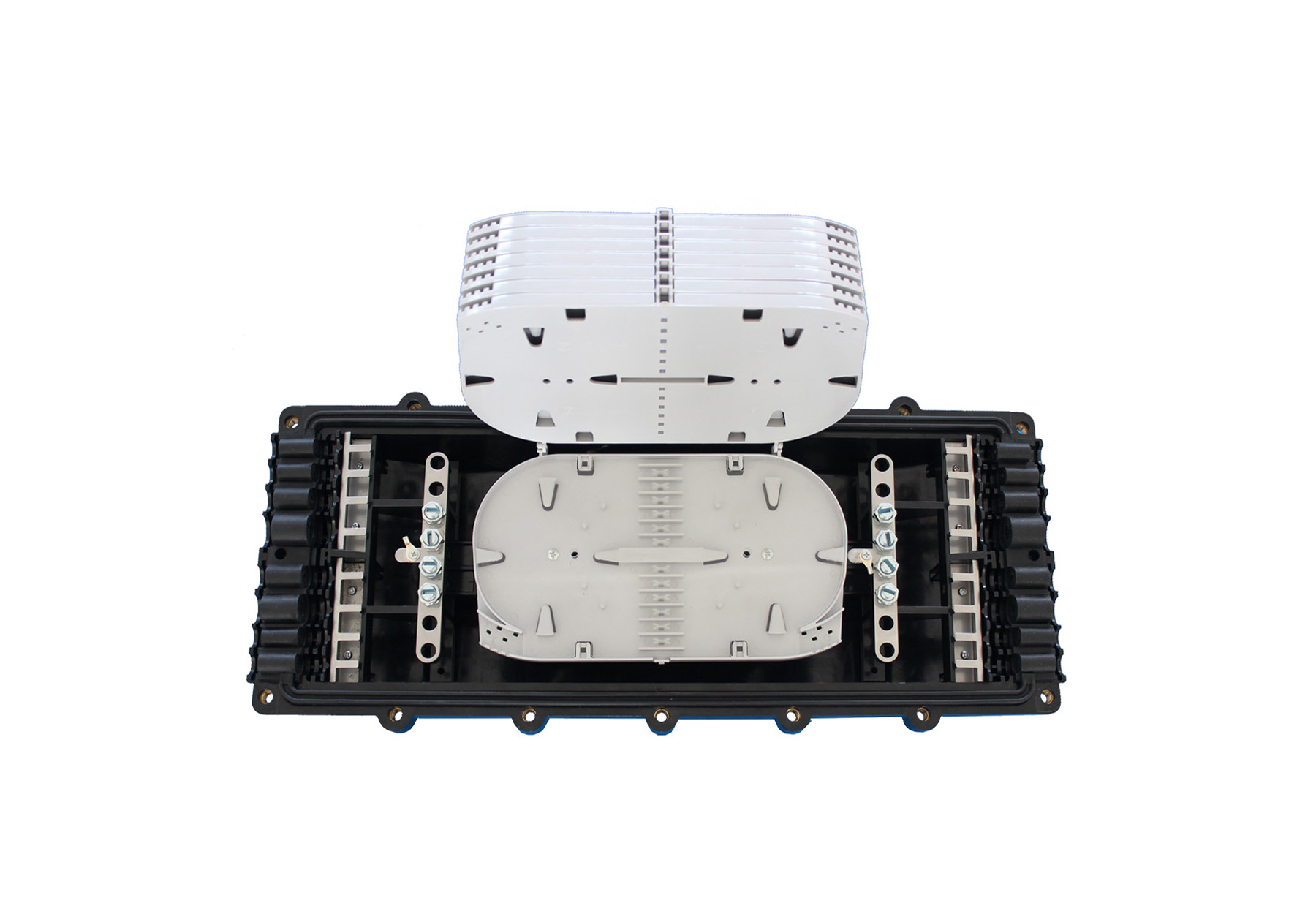

Splicing capacity(Max)（T067A）

8x48=384F

Optional as request

Splicing capacity(Max)（T008A）

10x36=360F
